TheHive Flow Security#

6.0 One

TheHive Flow generates and stores several secrets on its host, isolates its services on an internal Docker network, and terminates TLS at the nginx entry point.

Docker Compose deployment

The settings and procedures below apply to the Docker Compose deployment of TheHive Flow. On a Kubernetes deployment, see Configuration and operations on Kubernetes instead.

Secrets inventory#

Secret	Location on host	Generated by
PostgreSQL superuser password	`.env`	`init.sh`
`thehive_flow` database password	`.env`	`init.sh`
`temporal` database password	`.env`, and its copy in `temporal/config/temporal-server.yaml`	`init.sh`
JWT signing key	`.env`	`init.sh`
S3 secret access key	`.env`, and its copy in the identity the object storage keeps in `s3-store/data`	`init.sh`
TheHive API key	`thehive-flow/secret/thehive-api-key`, or `.env`	Operator
SMTP password of an email server override, when one is defined	The file of `thehive-flow/secret/` named in its `password` key	Operator
TLS private key	`nginx/certs/server.key`	`init.sh` or operator
Secret variables and settings pushed by TheHive	The `thehive_flow` database, in `postgresql/data`	TheHive and the users
Copies of all the above	The backup folders of `backup.sh`	`backup.sh`

All generated secrets are 256-bit random values produced by openssl rand -hex 32. None are committed to git: .env, thehive-flow/secret/*, the rendered Temporal configuration, the certificate files, and the data directories are all covered by .gitignore.

The postgresql, temporal, s3-store, and thehive-flow services run as the user who ran init.sh, so the secret files can stay readable by their owner only. Nginx runs as root inside its container and reads the TLS certificate files regardless of their mode. The script sets .env, temporal/config/temporal-server.yaml, and the TLS private key nginx/certs/server.key to mode 600. The check_permissions.sh script, which init.sh runs first, expects the files of thehive-flow/secret/ and the private keys of nginx/certs/ and certificates/ at mode 600 too. The backup.sh script creates each backup folder at mode 700.

Organization secret variables#

Organization secret variables live in the PostgreSQL database, not on the host filesystem. Their values are never displayed in the interface, and execution logs don't record them among the resolved inputs of a node. A workflow can't reference a secret in a value that's stored or returned, such as a run label, a workflow output, or the value of a Set local variable node. Code nodes are the exception: they receive secrets in clear and can print them, as described in Code transformation isolation. Their only copy outside the database is the database backup, covered in the warning below.

Settings pushed by TheHive#

TheHive pushes its license token and three of its own settings to TheHive Flow, which stores the settings in the PostgreSQL database and uses them to open the connections itself:

The SMTP configuration, including the SMTP password, used by Send email nodes.
The LLM providers, including their API keys, used by AI nodes.
The outbound proxy settings, including the proxy password.

The database stores these values unencrypted. Anyone who can read the database or its backup can read them, so restrict access to the PostgreSQL service and protect the backups as described in the warning below. Change these settings in TheHive, not in TheHive Flow. The only exception is SMTP: an email server override defined in thehive-flow/config/thehive-flow.yml replaces the SMTP configuration pushed by TheHive. Its password lives in a file of thehive-flow/secret/ or in the BEEFLOW_SECRET_MAILER_PASSWORD environment variable, not in the database.

External secret managers#

Secrets don't have to stay in .env. Docker Compose reads a variable from the shell that runs it before falling back to .env, so an external secret manager can export jwt_signing_key, thehive_api_key, s3_secret_access_key, flow_db_password, temporal_db_password, and postgres_password at deploy time. Inside the container, TheHive Flow resolves every BEEFLOW_SECRET_* variable from its environment first and falls back to the file in /secret. A variable set to an empty value counts as unset, and the file fallback engages.

Two limits apply. The init.sh script writes every secret it generates into .env regardless, so the file has to be protected either way. And the Temporal database password always lands on disk: temporal/config/temporal-server.yaml holds it, rendered by init.sh.

The Docker registry credentials of custom code transformation images and the password of an email server override aren't declared in .env or in docker-compose.yml. Pass them through the environment: block of the thehive-flow service, as described in Environment variable overrides.

Backup folders carry secrets

The object storage keeps its own S3 identity in cleartext inside s3-store/data, both the access key and the secret key. The database holds the organization secret variables and the settings pushed by TheHive, with the SMTP password, the LLM provider API keys, and the proxy password. And every backup holds .env, the API key file, and the TLS private key. The backup.sh script therefore creates its folders at mode 700. Treat the backup location with the same care as .env: encrypt the backups before shipping them off-host, and don't relax the permissions to make them easier to copy.

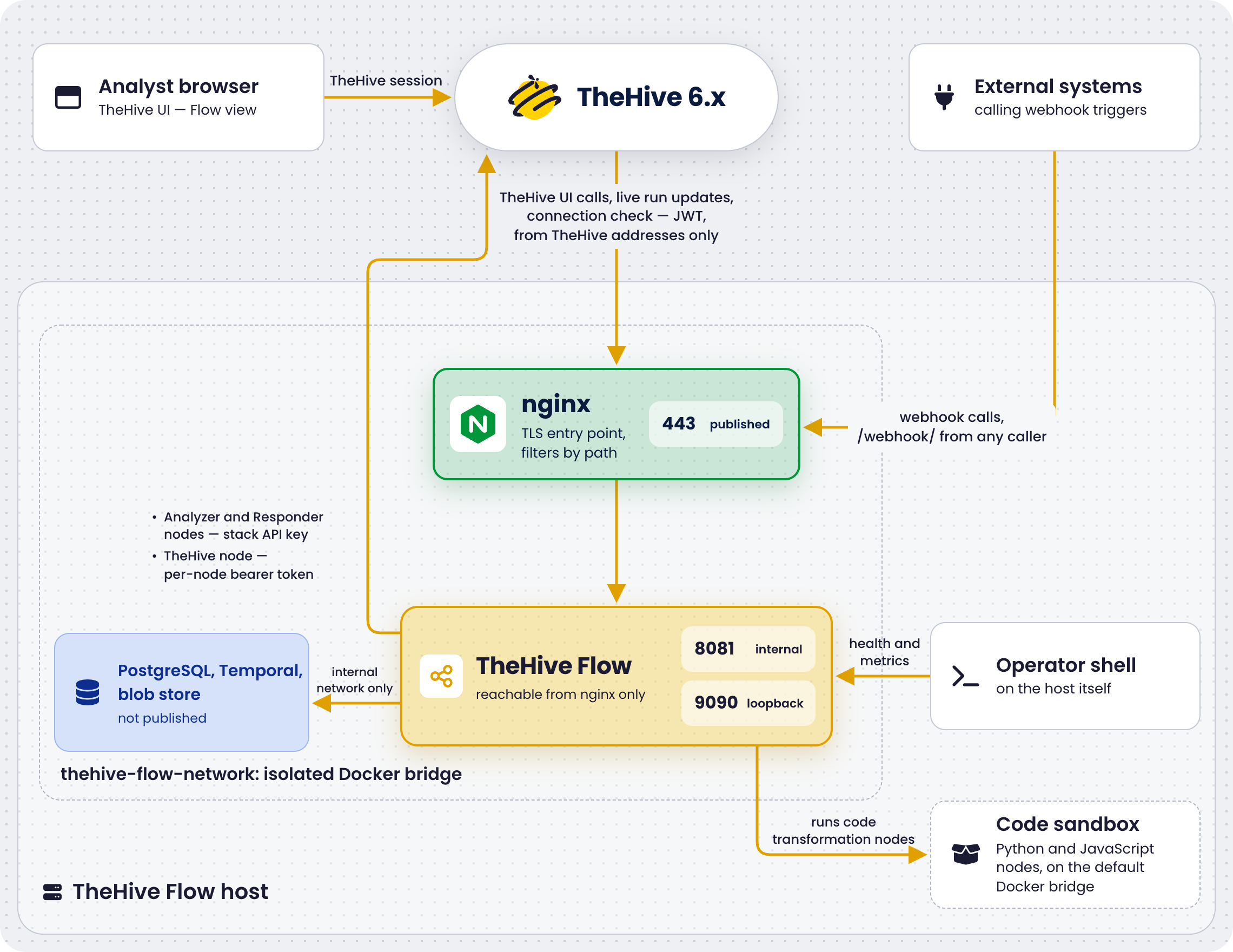

Network isolation#

Users never reach TheHive Flow directly. The browser talks to TheHive, which forwards the calls of the Flow view to TheHive Flow with a JWT and streams the live execution updates back to the browser. TheHive Flow calls TheHive back with an API key to run Cortex analyzers and responders. Webhook callers are the only other traffic that reaches the host, and all of it enters through nginx on port 443.

thehive-flow-network is an isolated Docker bridge. No port is reachable from the host unless explicitly declared with ports:.
The thehive-flow service on port 8081 isn't published on the host: all traffic enters through nginx on port 443.
Nginx forwards TheHive requests only from the addresses listed in nginx_thehive_addresses in .env, set by init.sh. A request from any other address receives 403, and so does every request while the list is empty. Webhook calls stay open to any caller. See TheHive address filtering.
The observability listener on port 9090 is published on loopback only, 127.0.0.1:9090, so operators can reach /livez and /readyz from the host. It has no application-level authentication: protect it with host firewall rules if the /metrics data is sensitive.
PostgreSQL, Temporal, and the object storage aren't published on the host at all. The S3 API on port 8333 is reachable only from inside thehive-flow-network.
Outbound connections opened by workflow nodes go through an egress guard that blocks non-public addresses, so a workflow can't probe the internal network. Internal targets must be explicitly allowlisted: see Egress allowlist. Code transformation nodes are the exception: see Code transformation isolation.

TheHive address filtering#

TheHive is the only client of the /api/ paths, and it enforces the security of these routes: a call that reaches them without going through TheHive bypasses it. Nginx therefore forwards /api/ only from the addresses in nginx_thehive_addresses, and answers 404 to every path other than /api/ and /webhook/.

List every node of a TheHive cluster. When TheHive goes through an outbound proxy or a Network Address Translation (NAT) device, nginx sees the address of that device. Listing it opens TheHive requests to every other client of that device too.

At start, nginx logs each entry it allows, and each entry it skips with the reason: an entry that isn't an IPv4 address or range, or an entry that covers the Docker network gateway. The filter relies on nginx seeing the real address of the caller. With the default Docker port publishing on Linux, it does. docker-proxy relays the connection instead for a client connecting over IPv6, with rootless Docker, or with "iptables": false in the Docker daemon configuration. In these cases, nginx sees the gateway of thehive-flow-network, the .1 address of the network, for every such caller. Allowing that address would open TheHive requests to all of them, so nginx skips any entry that covers it. If the nginx log shows the gateway as the client: of refused TheHive requests, make TheHive reach the host over a path that keeps its address, such as IPv4, instead of changing the list.

Code transformation isolation#

On Kubernetes, see Code transformation isolation on Kubernetes.

Python code and JavaScript code nodes run the script a workflow author wrote. Every user holding the manageOrchestrator/writeWorkflows permission can therefore run arbitrary code on the deployment, and the script runs with the same trust as that user. Grant the permission accordingly.

Each script runs in a disposable container on the host Docker daemon, launched from a distroless image for the run and removed as soon as the script exits or its node timeout expires. A small ryuk reaper container also runs on the host daemon for the life of the thehive-flow service, and removes orphaned script containers after a crash. To launch these containers, the thehive-flow service mounts the Docker socket of the host, which grants it root-equivalent access to the host, as mounting the socket in Cortex does for analyzers. Inside the script container, the deployment doesn't restrict the script further:

Network: The container joins the default Docker bridge, not thehive-flow-network. The script can reach the internet and every address the host can reach, including services on the local network. The egress guard doesn't apply to it, and the egress allowlist has no effect on it. The stack's internal services stay out of reach by name, since they only live on thehive-flow-network.
User: The script runs as the user of the image, which is root for the two default images, with the default Docker capability set.
Resources: No CPU, memory, or process limit is set on the container. A runaway script competes with the rest of the host until the node timeout stops it.
Secrets: A secret variable the script references is handed to it in clear, and nothing prevents the script from printing it. Printed values land in the script_out output and in the execution logs, which don't redact them.

To reduce the exposure:

Restrict the manageOrchestrator/writeWorkflows permission to the profiles that need it, and review the code nodes of imported workflows before running them.
Filter the outbound traffic of the default bridge with host firewall rules, for example in the DOCKER-USER chain, to keep scripts away from the internal network.
Build a custom execution image that runs as a non-root user when the scripts don't need root.
Keep the node timeout short, since it's the only bound on a script's run time.

Webhook exposure#

Webhook triggers are the one entry point designed to be called by external systems. They don't go through TheHive. They enter through nginx on port 443, under the /webhook/ path prefix of the public URL. The authentication method configured on each webhook controls who can start the workflow, so select one for any webhook reachable from outside your network.

Two network-level restrictions narrow the exposure further:

Host firewall: When every caller is known, restrict inbound port 443 to their source addresses. TheHive reaches TheHive Flow on the same port, so keep TheHive host among the allowed sources.
Nginx: To restrict only the webhook paths while TheHive requests stay restricted to nginx_thehive_addresses, add access rules to the existing location /webhook/ block of the nginx configuration template, above its proxy_pass line. Then restart nginx with docker compose restart nginx. The server-level proxy directives are inherited, so the block only needs the access rules and proxy_pass:
```
location /webhook/ {
    allow <caller_cidr>;
    deny  all;
    proxy_pass http://thehive-flow/webhook/;
}
```

Rate limiting#

A dedicated rate limiter protects each webhook. It applies before authentication, so it rejects a flood of requests without spending authentication work or reading any payload. The limiter is a token bucket kept in memory by the thehive-flow service, keyed by webhook and client IP address. It allows 120 requests per minute by default: the bucket starts full, refills continuously, and holds at most 1 minute of traffic, which is also the tolerated burst. A request over the limit receives a 429 response with a Retry-After: 60 header.

By default, the client IP address used as the key is the address of the TCP connection, not the X-Forwarded-For header, which a caller could forge. Requests reach the thehive-flow service through the shipped nginx and therefore all carry the proxy address. In practice, the limit is a per-webhook limit, shared by every caller of that webhook. To key the limit on the real caller instead, list the range of thehive-flow-network under api.public.trusted_proxies in thehive-flow/config/thehive-flow.yml. TheHive Flow then reads the caller address from the X-Forwarded-For header that nginx sets, as described in Trusted proxies.

The value of the limit can't be changed: every webhook applies the default of 120 requests per minute.

TLS#

Nginx terminates TLS on port 443. Two modes are available, selected by init.sh:

Self-signed certificate, the default: init.sh generates a 365-day, 2048-bit RSA certificate for the configured nginx_server_name. Clients must either trust the certificate or turn off certificate verification.
Custom certificate: Place server.crt, server.key, and ca.pem in ./certificates/ before running init.sh. init.sh copies the files to nginx/certs/ and turns on the ssl_trusted_certificate directive automatically in the nginx configuration.

Internal service-to-service communication, from the thehive-flow service to PostgreSQL, Temporal, and the object storage, uses plain TCP on the isolated Docker network. The S3 endpoint is plain HTTP. No mTLS is used between internal services.

Certificate for external webhook callers#

As soon as a webhook is called from outside, the certificate nginx presents must be signed by an authority the caller trusts. That's a public certificate authority (CA) for a cloud service, or the internal certificate authority of your organization for an internal sender. Most senders refuse the self-signed certificate init.sh generates by default. Provide your own certificate, and renew it as described in TLS certificate renewal.

A recommended topology puts a reverse proxy or a load balancer of your own in front of TheHive Flow host: it carries the public certificate and forwards only /webhook/<id>. Set flow_public_url to its address so that webhook URLs point at it. TheHive keeps calling nginx directly: don't list the address of that proxy in nginx_thehive_addresses.

TLS toward TheHive#

When flow_thehive_url is an https:// address, the thehive-flow service validates TheHive certificate against the system trust store of its image, so a certificate signed by a public CA works as is. There's no option to turn off certificate verification on this channel.

For a certificate signed by an internal CA, mount the CA bundle into the container and point the SSL_CERT_FILE variable at it, in the thehive-flow service of docker-compose.yml or in a docker-compose.override.yml file. Then apply with docker compose up -d thehive-flow:

services:
  thehive-flow:
    volumes:
      - /path/to/internal-ca.pem:/etc/ssl/internal-ca.pem:ro
    environment:
      SSL_CERT_FILE: /etc/ssl/internal-ca.pem

The file replaces the system trust store for the whole process, so it must hold every CA the service needs to trust, including the public CAs used by the external systems your workflows call.

Rotate secrets#

There's no scheduled rotation, and no tooling automates one: init.sh generates every secret once, and the procedures below rotate them manually.

JWT signing key#

The JWT key must be the same on TheHive Flow and TheHive simultaneously. In-flight requests fail during the brief rotation window.

Generate a new key with openssl rand -hex 32.
Update jwt_signing_key in .env.
Update the TheHive configuration with the new key.
Apply the change on both sides at the same time. Recreate the containers rather than restarting them, because a plain docker compose restart doesn't re-read .env. On TheHive Flow host:
```
docker compose up -d thehive-flow
```
On TheHive host:
```
docker compose up -d thehive
```

TheHive API key#

Update the secret file, keeping it readable by its owner only:

printf '%s' '<thehive_api_key>' > ./thehive-flow/secret/thehive-api-key
chmod 600 ./thehive-flow/secret/thehive-api-key

Alternatively, update the value in .env:

thehive_api_key=<thehive_api_key>

The command that applies the change depends on where you put the key. After editing the secret file, restart the service so the file is read again:

docker compose restart thehive-flow

After editing .env, recreate the container, because a plain restart doesn't re-read .env:

docker compose up -d thehive-flow

PostgreSQL passwords#

The init.sh script aligns the thehive_flow and temporal database roles with the passwords in .env at each run, and renders the Temporal one into temporal/config/temporal-server.yaml. Rotating either password therefore takes an edit and a run of the script, during a short stop of the stack:

Stop the services that use the passwords:

docker compose stop thehive-flow temporal

Set a new value for flow_db_password, temporal_db_password, or both in .env: openssl rand -hex 32 produces one.
Run the script again. It keeps the other secrets, alters the roles, renders the Temporal configuration, recreates PostgreSQL, whose container carries the role passwords, and starts Temporal. Without a custom certificate, it also generates a new self-signed certificate: see TLS certificate renewal.
```
bash ./scripts/init.sh
```
Start the rest of the stack:
```
docker compose up -d
```

The superuser password is different: PostgreSQL reads postgres_password at its first start only, and the script doesn't alter the postgres role. To rotate it, alter the role first, then update .env and recreate the container:

docker compose exec postgresql psql -U postgres -c "ALTER ROLE postgres PASSWORD '<new_password>';"

TLS certificate renewal#

For the self-signed certificate, which expires after 365 days, run init.sh again: when ./certificates/ holds no custom certificate, the script generates a new one at each run. Then restart nginx, which reads the certificate files from the mounted nginx/certs/ directory:

bash ./scripts/init.sh
docker compose restart nginx

For a custom certificate, place the new server.crt, server.key, and ca.pem set in ./certificates/, then run the same two commands: the script copies the files to nginx/certs/. Replacing the files in ./nginx/certs/ directly and restarting nginx works too. In both directories, keep server.key at mode 600. No other service downtime is required.

Every run of init.sh renews a self-signed certificate

The script doesn't check whether a self-signed certificate already exists. Every run without a custom certificate in ./certificates/ generates a new one, including the runs of an upgrade, a PostgreSQL password rotation, or a restore on another host. Nginx serves the new certificate at its next start. A TheHive configured to trust the specific certificate then rejects TheHive Flow until the new nginx/certs/server.crt is copied to TheHive host and TheHive restarted. Webhook callers that pin the certificate need the new one too. A custom certificate avoids the churn: the script copies the same files at each run.

S3 secret access key#

The key exists in two places that must agree: .env, which the thehive-flow service reads, and the S3 identity stored inside the object storage itself, which init-s3-store provisioned. Updating only .env leaves TheHive Flow authenticating with a key the storage rejects.

Update s3_secret_access_key in .env, then provision the identity on the store again and recreate the thehive-flow container so it picks up the new value:

docker compose up -d init-s3-store
docker compose up -d thehive-flow

up -d runs the provisioning container again even though it has already run and exited. Compose restarts a stopped one-shot service, and recreates it outright when its environment changed, which is the case here. Stored blobs are unaffected, because the identity governs access, not the content.

Rotating the secret under the same access key ID replaces it, and the previous secret stops working: that's the rotation path the stack supports. Changing s3_access_key_id instead adds a second access key: the provisioning step never removes a credential you stop referencing, so the previous key stays active on the store indefinitely, with its old secret. To retire an access key ID entirely, remove it explicitly.

The following command drops the identity and every access key under it. The -apply flag is required: without it, s3.configure runs in simulation mode and changes nothing.

docker compose exec s3-store \
  sh -c 'echo "s3.configure -user thehive-flow -delete -apply" | weed shell -master s3-store:9333'

Then provision the identity you want to keep:

docker compose up -d init-s3-store

Verify what the store holds before and after. The output contains secret keys in cleartext, so don't paste it into a ticket:

docker compose exec s3-store \
  sh -c 'echo "s3.configure" | weed shell -master s3-store:9333'
